- How to install for 2009-2012 model without OEM navigation: https://youtu.be/A4XEGsmJbFw
- Please make sure OEM screen is still connected and functioning.
- How to install for 2013-2014 retaining SYNC2 model: https://youtu.be/ZyyBdtJNKaE
- How to connect for 2013-2014 not retaining SYNC2 (you can choose to retain or remove OEM CD radio): https://phoenixautomotivellc.freshdesk.com/a/solutions/articles/36000446189

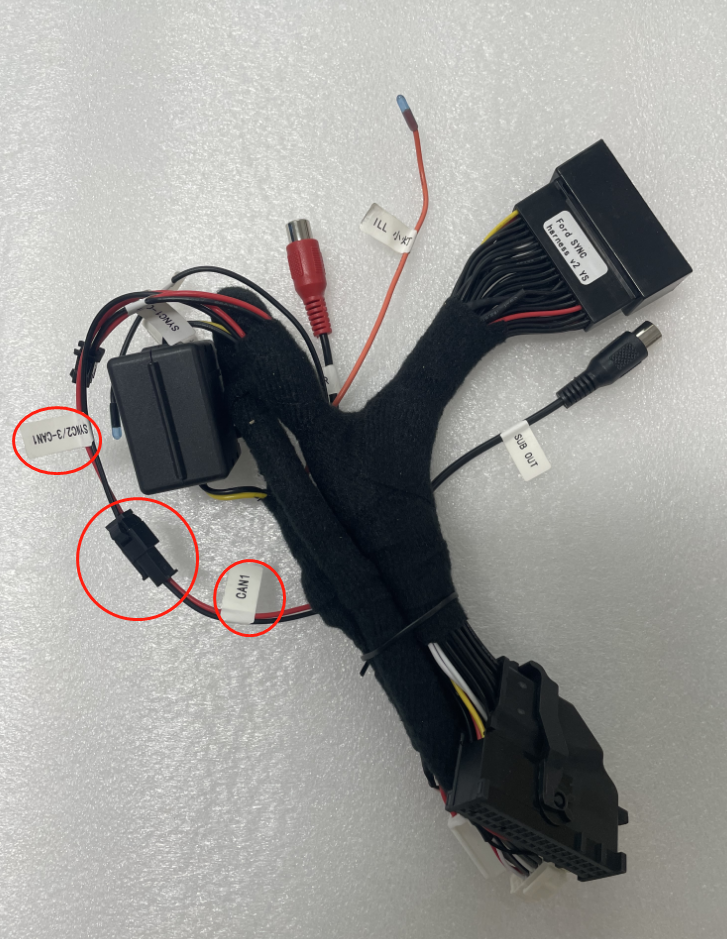

- Please make sure you connect the SYNC2 module and attach it to the back of the unit (if there is a metal cover on the SYNC2 connector of our unit, please remove it before attaching the module), and, if the harness has, connected the 2 PIN connector like the picture below:
- If your OEM radio does not work normally, only can install the unit that Remove OEM radio.
- If keep OEM CD radio, please use the brackets we provide.

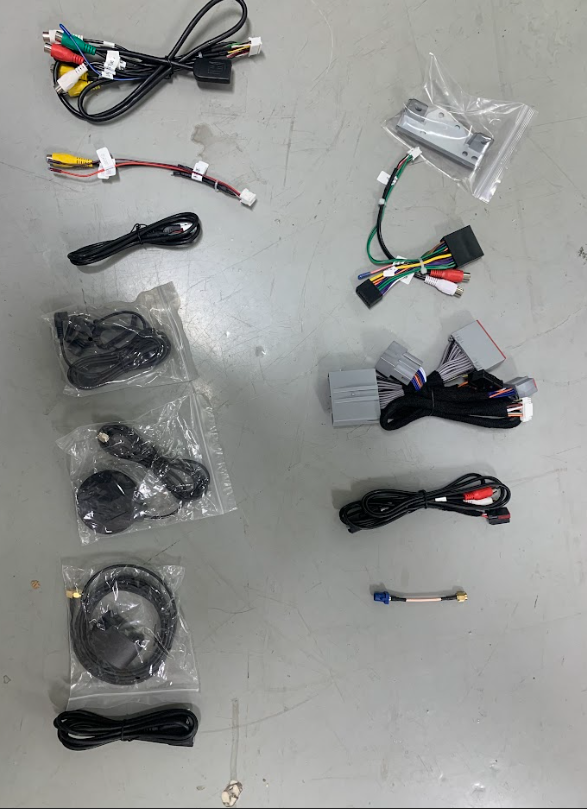

- The picture of cables for 2009-2012 model that retained OEM host (main harness adapter may not be needed depending on the batch):

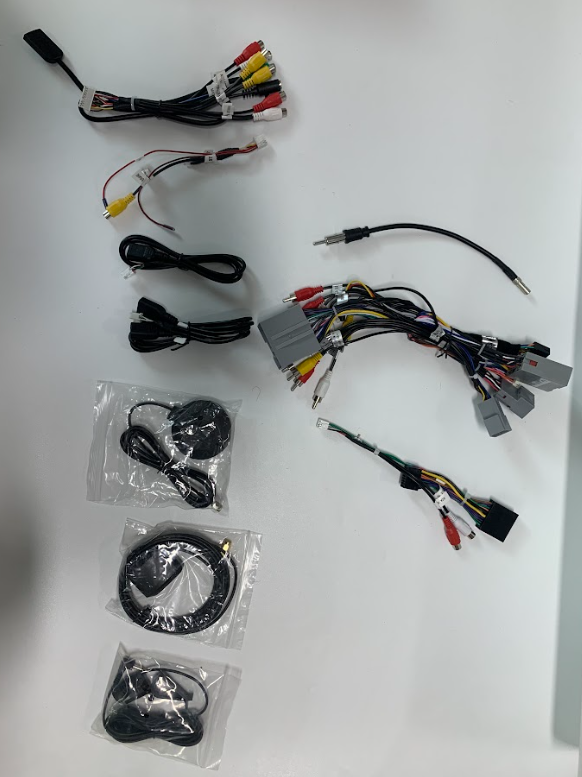

- The picture of cables for 2009-2012 model that removes OEM host (main harness adapter may not be needed depending on the batch):

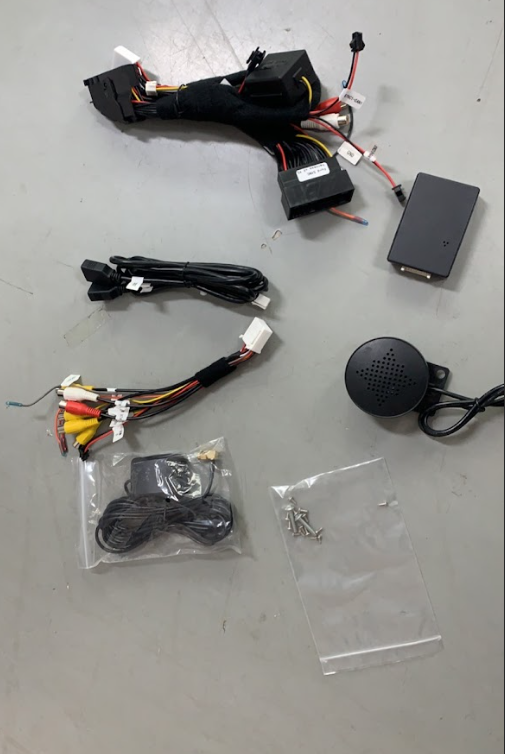

- The picture of cables for 2013-2014 sync 2 model:
